Product Introduction

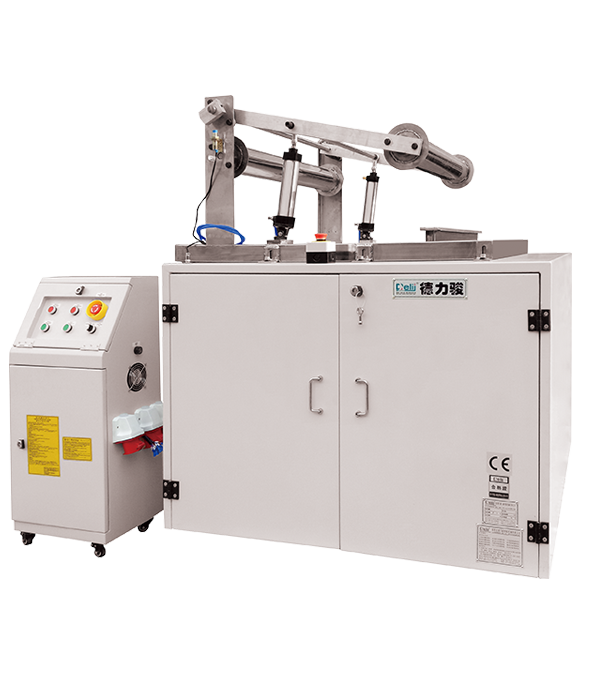

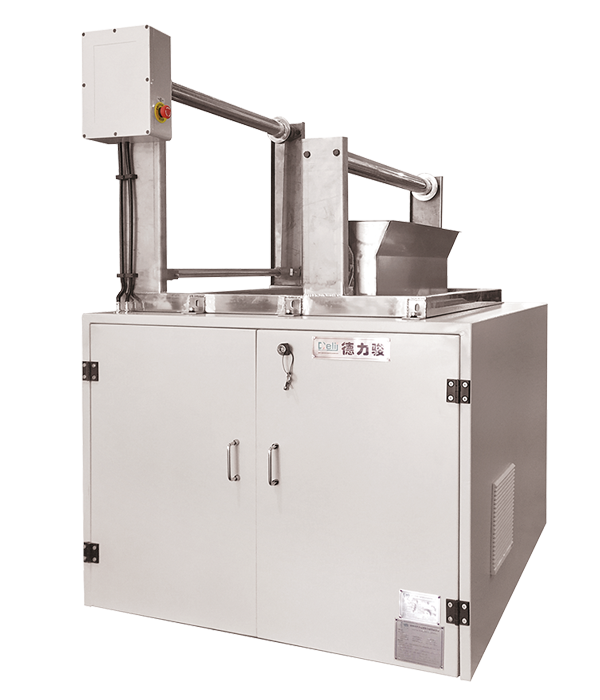

Two/Three Station Online Crusher is mainly used inline with two/three station thermoforming machine of manufacturing environment protection disposable lids,bowls,container and tray etc.Widely used in crushing thermoforming edge scrap,skeletal waste after cutting with PP,PET,PS,PLA,PVC and biodegradable starch etc.
Two/Three Station Online Crusher is working integrate with online crush, conveying,storage in full closed status.So it is avoid to pollute,labor is saved.And achieve to meet the requirement of the environmental protection. Crusher installed at the end of the line(back or under of trim press or stacking station)to be perfectly matched to all thermoforming machines.The production processes will be enhanced and environment will be improved. The biggest effect is traditional productivity will be changed.It has the characteristics of beautiful,low energy consumption,high output and low noise.
Product Features
I .Traction unit:
1) The power parts are eauipped with gear reducer motor from famous brand. it is convenient, durable and stable quality.
2) The rollers of traction unit are precision working from high-strength seamless steel tube, and then plate hard chrome forsolidity and anti-rusty. lt is elegant appearance and follow environmental protection.
3) The body of traction unit are precision machining from GB steel, and then plate hard chrome for solidity and anti-rustyIt is elegant appearance and follow environmental protection.
Ⅱ.Crusher:
1) The knives of machine is famous special steel. lt is high hardness, strong wear-resistance and good toughnessAnd it is especially durable, and hioh crushina ability to easily crush allkinds of sot and hard materials.
2) The tool carrier is designed with hollow structure, which is to stably run, smallwind-resistance, radiate fast and durable
3)The body of machine are welded from hiah-strength GB steel. lt is durable.
4) The stander are welded with GB U-steel and fixed with screws to keep the stability of machine.
5)The bearing with famous brand is stable and durable.
6)The pulley are casting and precision machining. lt is durable.
7) The bottom of machine is equipped with foot shock, can actively adjust the balance of machine.
8) The cabinet of machine is designed with soundproof coton, So the noise is low when working, which meets the reguirements of
environmental protection.
9) Within thickness: 0.2~3.5mm of materials can be crushed. The special thickness of materials shall be noted.m.
Blower:
1) The base of blower are desianed with GB anale bar. And the motor is from famous brand to ensure auality. it is environmenta
protection. health and durable.
2) The cover and blades of blower are welded with stainless steel, which is never rust, environmental protection and durable
3) The special design of blade of blower increase the pressure to achieve the good effect.
Specification parameters
|
Parameters |
Model |
DLF-800T |
DLF-800L-T |
DLF-1000T |
DLF-1200T |
|
The power of main motor (KW) |
●7.5 |
· 11÷15 |
●15/~22 |
●15/×22 |
|
|
The power of blower(KW) |
●4/÷5.5 |
●4/*5.5 |
●4/△5.5 |
●4/*5.5 |
|
|
The power of tractor (KW) |
0.75 |
●1.5 |
●1.5 |
●1.5 |
|
|
The fixed knives (PCS) |
4 |
4 |
4 |
4 |
|
|
The rotating knives (PCS) |
6 |
6 |
6 |
9 |
|
|
Knives material |
DC53、Special steel |
||||
|
The dia.of screen mesh (M) |
89.5.☆10.5.☆12 |
||||
|
size of crushing chamber(MM) |
800×250 |
800×330 |
1000×330 |
1200×300 |
|
|
Crushing capacity (KG/H) |
200~300 |
300~500 |
300~500 |
300~500 |
|
|
The noise when crushing(DB) |
65~85 |
65~85 |
65~85 |
65~85 |
|
|
The feeding blower |
√ |
√ |
√ |
√ |
|
|
Cyclone separator |
☆ |
☆ |
☆ |
☆ |
|
|
Storage tank |
☆ |
☆ |
☆ |
☆ |
|
|
The size of machine L×W×H(MM) |
1360*1220*880 |
1650*1350*1100 |
2000*1400*1200 |
2200*1400*1300 |
|

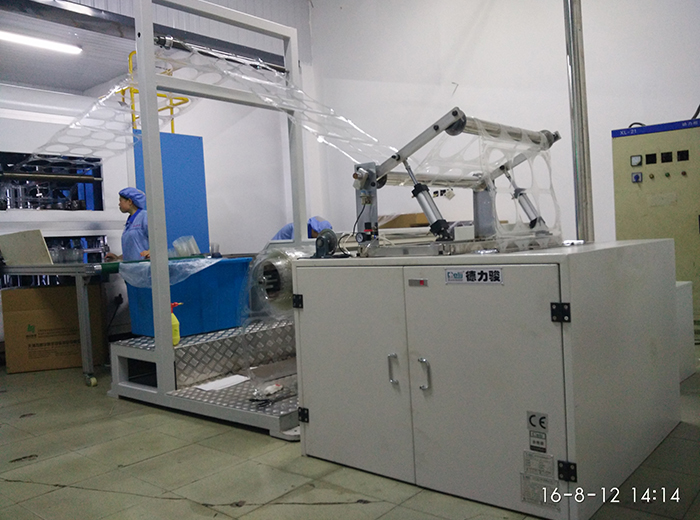

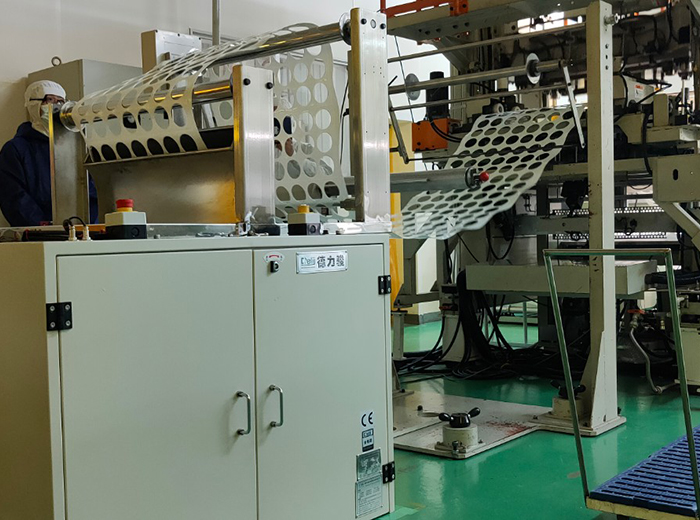

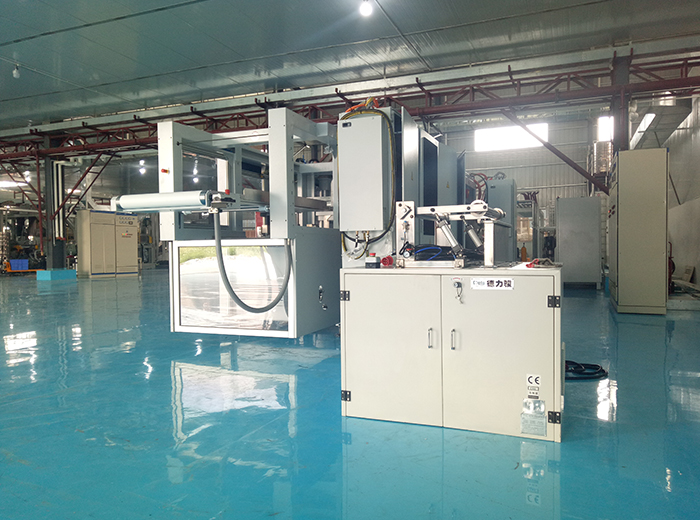

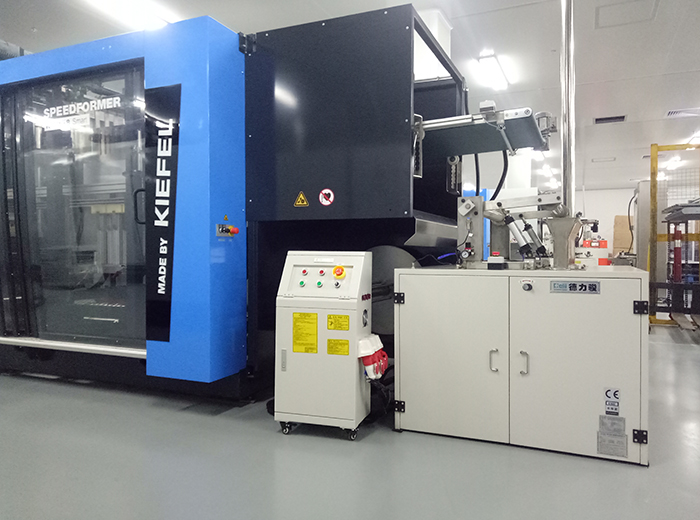

Application Cases
