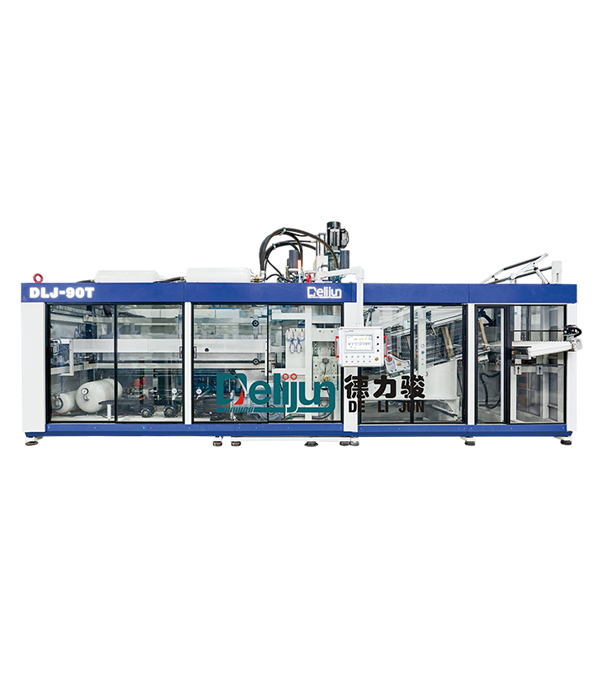

Automatic Plastic Cup Thermoforing Machine
Tips: If want to know details and different parameter of products,please click on "Consult Now" for consultation.

Product Introduction

Automatic Plastic Cup Thermoforming Machine is a new type of equipment developed for high output, low energy consumption, high hygiene standards, stable product dimensions, and reduced human resources. This product features high efficiency, high quality, and high reliability, making it suitable for large-scale production. The model adopts a brand-new design concept and control system, ensuring high efficiency and stability throughout the entire production process It is suitable for forming PET、PP、PS、PLA  sheet that can produce various plastic products, such as drinking cups, milk cups, water cups, juice cups, jello cups, coffee cups, square high-tensile box etc.

Product Features

1、Special CAM optimization design: Faster and smoother operation.
2、The product is combined with 7~8 bar high-speed air compression molding and in-mold cutting.
3、The mechanical automatic counting and stacking of products comply with hygiene standards and reduce labor
4、Both stretching and sheet feeding are driven by servo motors
5、Quick mold changing and simple maintenance work.
6、It adopts a conjugate CAM transmission structure, which makes the operation more stable, the operation and maintenance more convenient.
7、It adopts a four-column structure, ensuring stable operation and high precision of the forming mold table.
8、The mold platform can be automatically raised and lowered, making mold replacement convenient and safe.
9、The servo motor drives the sheet feeding and stretching forming, featuring high motion accuracy and convenient control.
10、German imported ceramic heating plates feature high thermal efficiency, low energy consumption and long service life.
11、The unique flip stacking structure enables automatic stacking under high-speed molding.
12、PLC Integrated control, touch screen digital display, convenient control
13、The equipment has a high degree of flexibility in producing a wide variety of products, which is guaranteed by the simple integration of modern flip plate stacking systems and automated solutions.
14、The equipment has a high degree of flexibility in producing a wide variety of products, which is guaranteed by the simple integration of modern flip plate stacking systems and automated solutions.
15、The innovative mechanical design process, large cutting force, and optimized molding through the use of the latest bridge plug assistance and molding air technology enable it to maintain stable performance under continuous high-quality production.
16、Due to the use of integrated ductile iron, this product demonstrates the highest stability, which makes it particularly suitable for processing PET and PP as well as biodegradable plastics products.

Specification parameters

Main Technical Specification

Parameter

DLJ-70T

DLJ-90T

Max. Forming Area

750×400MM

920×600MM

Min. Forming Area

600×280MM

780×520MM

Effective Forming Size

730×400MM

900×600MM

Max. Product height

230MM

230MM

Max. Sheet Width

750MM

920MM

Sheet Thickness

0.3~3.5MM

0.3~3.5MM

Clamping Forces

600KN

900~1000KN

Upper/Lower Heating Power

156KW

236KW

Running Speed

PET: 20~30Cycles/min

PP: 15~25Cycles/min

PET: 20~30Cycles/min

PP: 15~25Cycles/min

Max. No-load Speed

35Cycles/min

35Cycles/min

Air Requirement

6~8bar

6~8bar

Total Installed Power

200KW

200KW

Approx. Machine Weight

15000KG

20000KG

Machine Dimensions

L15×W3.5×H3.6M

L15×W3.5×H3.6M

Note: The specification are subject to change without prior notice.
